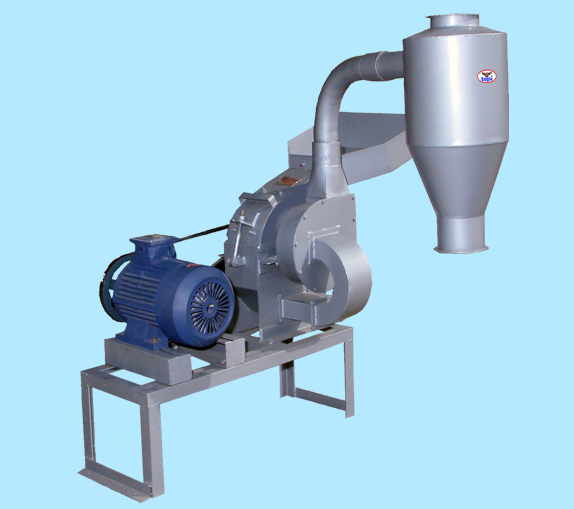

TECHNICAL DETAILS OF AIR CLASSIFIRE: |
| MODELS AVAILABLE |
| MODEL |
H.P. |
PRODUCTION |
| |
|
|
| EEPHM 4 X 8 |
2 |
20 to 40Kg/Hr. |
| EEPHM 5 X 10 |
3 |
30 to 45Kg/Hr. |
| EEPHM 6 X 12 |
5 |
50 to 70Kg/Hr. |
| EEPHM 7 X 14 |
10 |
100 to 150Kg/Hr. |
| EEPHM 10 X 16 |
20 |
200 to 260Kg/Hr. |
| EEPHM 10 X 20 |
25 |
250 to 325Kg/Hr. |
| EEPHM 12 X 24 |
30 |
400 to 600Kg/Hr. |
| EEPHM 13 X 26 |
40 |
800 to 1000Kg/Hr. |
|
| R.P.M |
2000 TO 4000 |
| OUTPUT PRODUCTION |
25 MESH TO 120 MESH.(*) |
| SPACE REQUIREMENT |
DIFFTRENT AS PER MODEL |
| FEEDING SYSTEM |
MANUAL AND MECH. AUTO |
| BITTERS AND LINERS |
WE ARE USING GRADED MATERIALS IN BITTERS AND LINERS SO IT BECOMES MAINTENANCE LESS TILL LONG TIME. |
| FOUNDETION |
OUR BITTERS, FULLY DYNEMIC BALANCED AND WE USE BEST QUALITY BEARING SO EAGLE WET & DRY GRINDER NEEDS NO ANY FOUNDETION IN SMALL MODELS WHICH IS MOVEABLE. |
| NOTE : (*) IT WILL BE DEPEND ON INPUT MATERIAL SIZE AND OUTPUT MATERIAL'S MESH SIZE. IF YOU WILL GO FOR MORE FINESS THEN OUT PUT GOES DOWN. |
|
